Model Type:Analog I/O Module
Model Number:3700a
Manufacturer:TRICONEX
Voltage:0-5V, ±6%
TMR Technology:Yes
Input Points:32
Input Type:Diff, DC Coupled
Isolated Points:No
Input Update Rate:55 ms
Resolution:12 bits
Accuracy:<0.15% of FSR, from 0° to 60°C
Input Resistance (Load):30 MΩ (DC), min
Power-Off Resistance:30 KΩ (DC), typical
Common Mode Rejection:-80 dB (DC-100Hz), typical
Common Mode Range:-12V to +12V peak
Leg-to-Leg Isolation:200 KΩ, typical
Normal Mode Rejection @ 8Hz:-3 dB
Normal Mode Rejection @ 60Hz:-17 dB
Normal Mode Rejection @ 120Hz:-23 dB

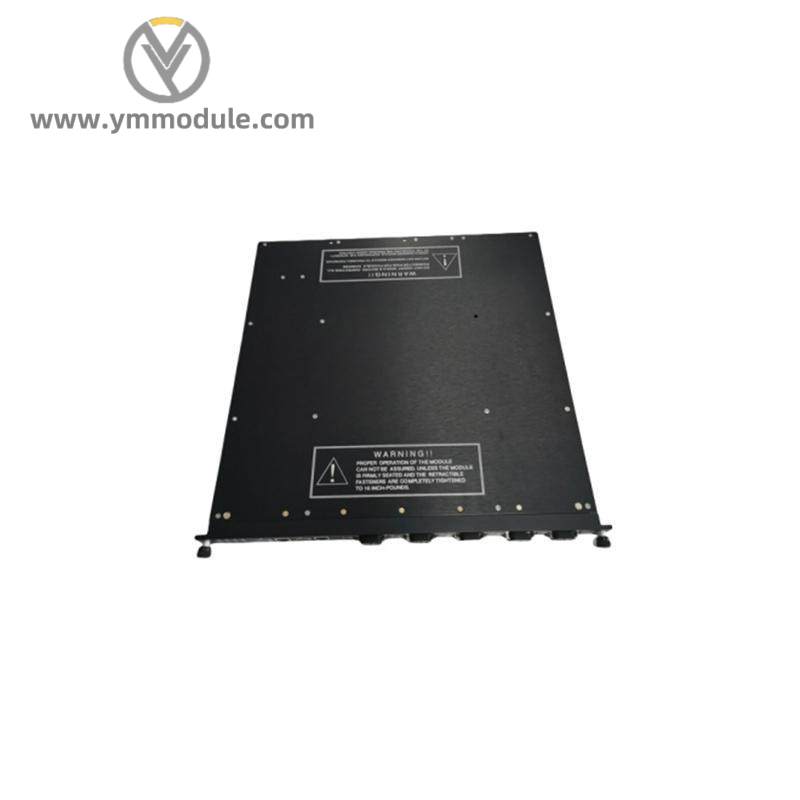

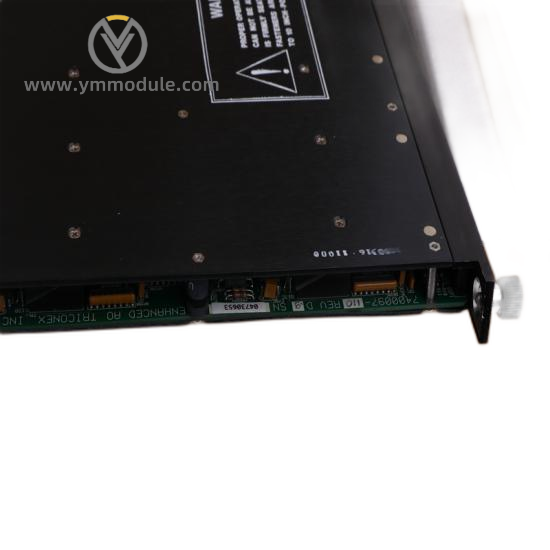

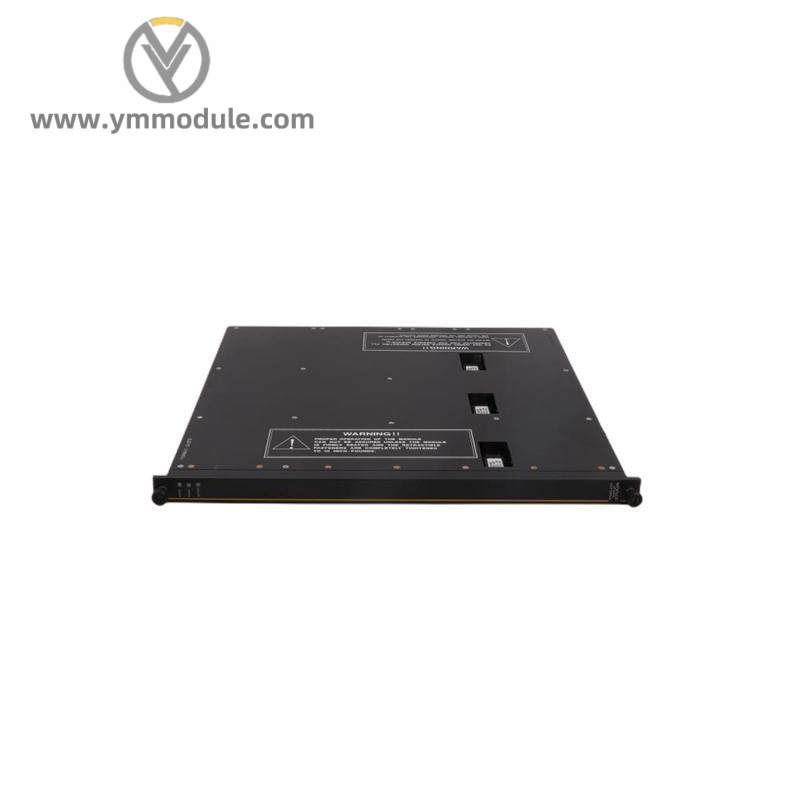

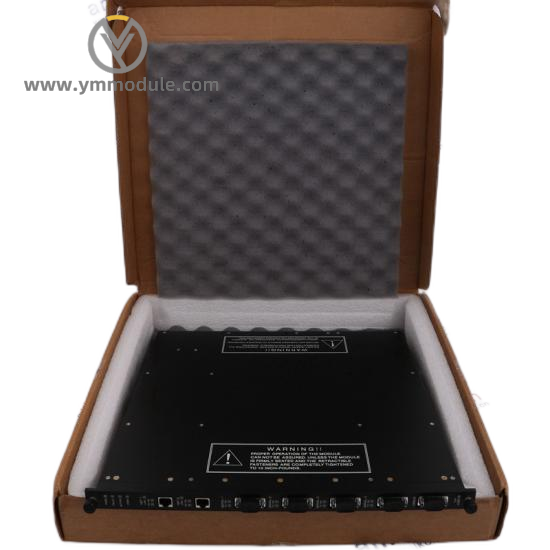

The TRICONEX 3700A Analog Input Module is a high-performance component specifically designed for industrial automation systems. With its Triple Modular Redundancy (TMR) architecture, it ensures unparalleled reliability and fault tolerance, making it ideal for mission-critical applications.
This module features 32 differential input channels that are DC coupled, offering precise measurement and control. The resolution of 12 bits combined with accuracy within < .15% of full-scale range (FSR) from 0° to 60°C ensures consistent and reliable data acquisition.
The robust design of the TRICONEX 3700A allows for seamless integration into existing control systems, providing a reliable and efficient solution for industrial environments. Its common mode rejection ratio and leg-to-leg isolation further enhance its performance, ensuring minimal interference and noise.
Whether you’re implementing a new system or upgrading an existing one, the TRICONEX 3700A Analog Input Module is the perfect choice for your industrial automation needs.
