Product Type:Network Interface Module
Product ID:MVI56-MNET
Backward Compatibility:MVI56-MNETR versions
Single-Slot ControlLogix Backplane:Compatible
Ethernet Configuration:10/100 Mbps auto crossover detection
Application Port:User-definable
Module Data Memory Mapping:Up to 5000, 16-bit registers
CIPconnect-enabled:Network configuration and diagnostics monitoring
Reduced I/O Image Size:Optimized for remote rack implementations
Certification:Certified product
Operating Voltage:220 V
Output Frequency:30 kHz
Series:MVI56-MNET

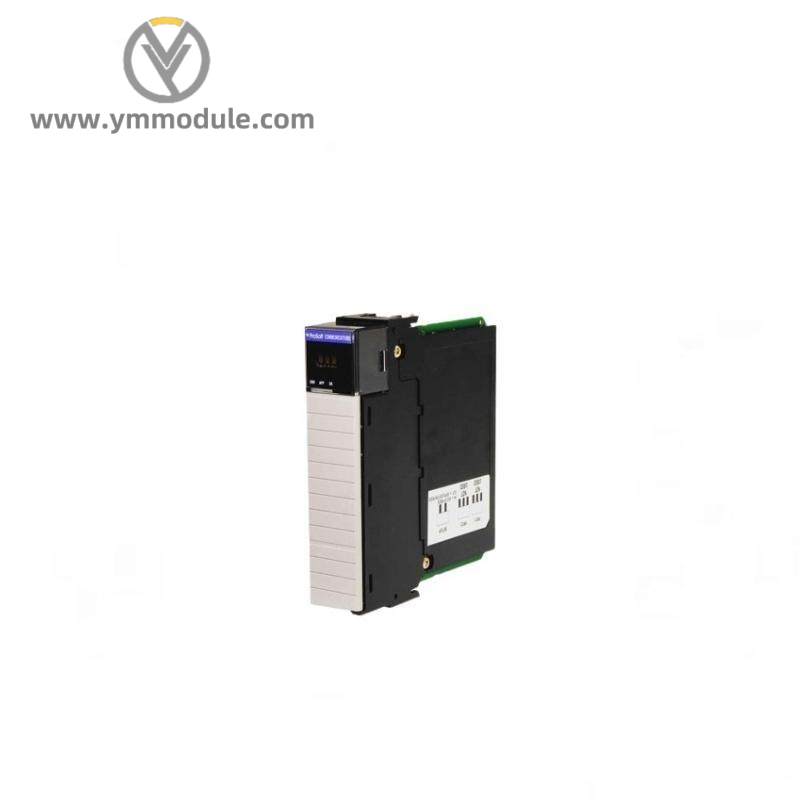

The Prosoft MVI56-MNET Network Interface Module is designed for seamless integration into industrial control systems, ensuring high-speed, reliable communication between your ControlLogix processor and external devices. This module supports up to 30 clients and 20 servers, making it an ideal choice for complex, multi-server environments.
With advanced features like user-definable module data memory mapping up to 5000, 16-bit registers, this module ensures efficient data management. Its backward compatibility with previous versions and support for 10/100 Mbps auto crossover detection on Ethernet configuration and application ports make it adaptable to various network setups.
The server capability of the MVI56-MNET module enables direct access from Human Machine Interfaces (HMIs), Supervisory Control and Data Acquisition (SCADA) systems, or Distributed Control Systems (DCS). It simplifies integration with these systems by providing access through the integrated RSLogix 5000 using an Add-On Instruction (AOI) or ladder file without requiring additional programming.
This module also boasts faster response times for multi-server applications, which enhances operational efficiency and reduces delays. It minimizes the impact on other server communications when one server device experiences downtime, ensuring system reliability and stability.
For network configuration and diagnostics monitoring, the CIPconnect-enabled feature allows the use of ControlLogix 1756-ENxT and 1756-CNB modules, enhancing troubleshooting capabilities. Additionally, the reduced I/O image size specifically optimizes remote rack implementations, making it suitable for various industrial settings.
Prosoft’s MVI56-MNET module stands out with its robust design and advanced features, making it an indispensable component in modern industrial automation systems. It offers a blend of performance, reliability, and ease of integration, ensuring that your operations run smoothly and efficiently.
