Type:TMR, PI
Input Signals:8, non-commoned
Resolution:16 bits
Accuracy:1,000 Hz to 20,000 Hz, ± 0.01%
Input Characteristics:(AC coupled, balanced differential)
Update Rate:25 ms, typical
Impedance (load):> 8 KW, 20 KW typical
Common Mode Range:-100 VDC to +100 VDC peak-to-peak
Normal Mode Range:1.5 V to 200 V peak-to-peak
Overrange Protection:±150 VDC, continuous
Hysteresis:150 millivolts, typical
Wave Shape:Sine, square, pulse, etc.

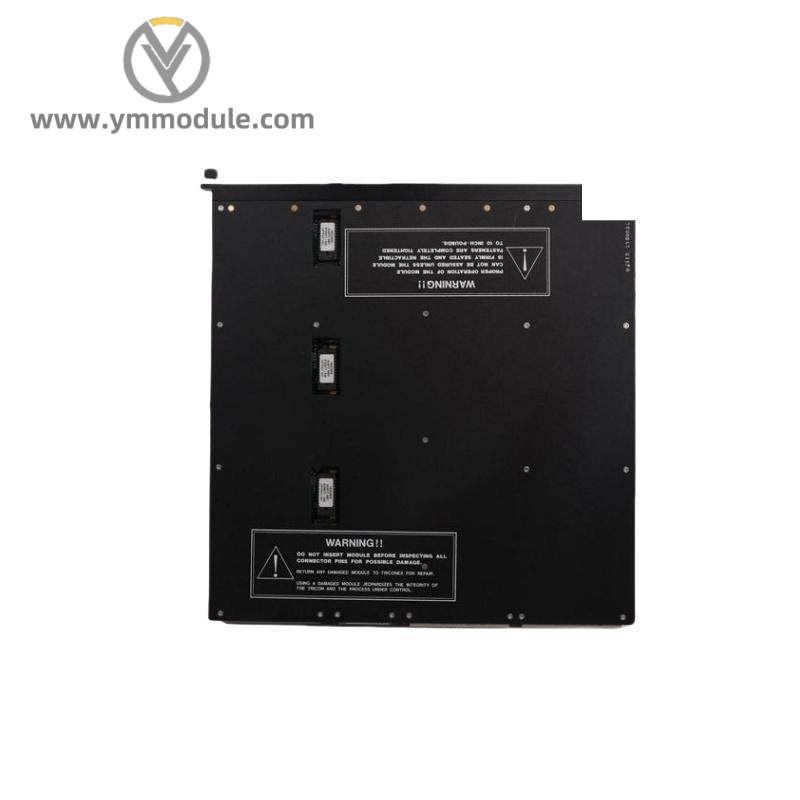

Engineered for robust industrial environments, the Invensys Triconex 3511 Pulse Input Module is designed to withstand harsh conditions without compromising on performance. This module is specifically tailored for applications requiring high accuracy and reliability.
Featuring advanced signal processing capabilities, it ensures precise measurement and control, even under varying environmental conditions. The AC coupling and balanced differential input characteristics guarantee accurate data transmission, enhancing system stability and efficiency.
With an update rate of 25 milliseconds, typical, this module ensures rapid response times, critical for dynamic industrial processes. The wide input range (-100 VDC to +100 VDC peak-to-peak) and normal mode range (1.5 V to 200 V peak-to-peak) accommodate diverse applications, making it a versatile choice for modern automation systems.
The module supports various wave shapes, including sine, square, and pulse, catering to a broad spectrum of industry needs. Its overrange protection feature ensures operational safety by continuously monitoring and limiting potential damage caused by excessive voltage levels.
Designed with user-friendliness in mind, the Invensys Triconex 3511 Pulse Input Module simplifies integration into existing control systems, reducing setup time and complexity. Its modular design allows for easy maintenance and upgrades, ensuring long-term reliability and cost-effectiveness.
