Part Number:DS200TBQCG1AAA
Series:Mark V
Manufacturer:General Electric
Product Type:RST Analog Termination Board
Functional Acronym:TBQC
Number of TBQC Connections:5
Connections:[“JBR”,”JFR”,”TEST”,”JBS/T”,”JFS/T”]
Technical Documentation:GEH-6153 Instruction Manual

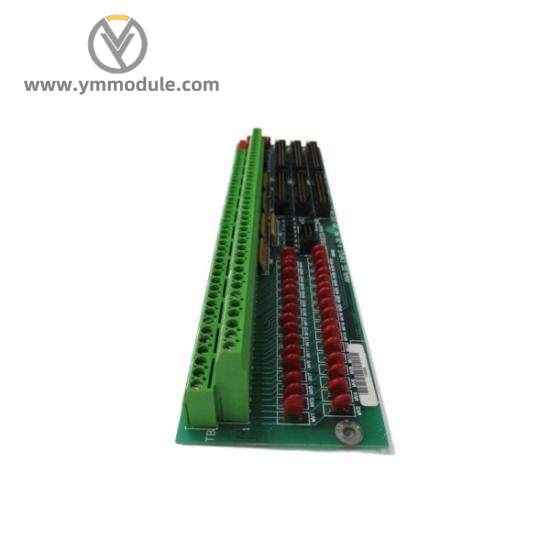

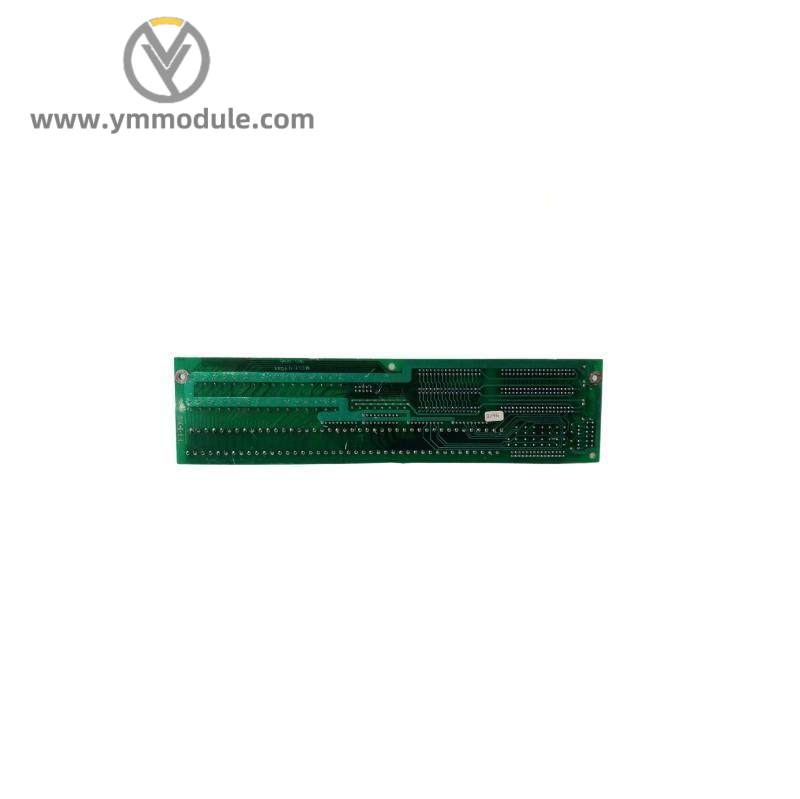

The DS200TBQCG1AAA Analog Input Milliamp I/O Termination Module is a highly specialized component designed for the Mark V Series of turbine control systems.
This module is engineered to handle precise milliamp input/output signals, ensuring reliable performance in demanding industrial environments.
The module includes five distinct connections—JBR, JFR, TEST, JBS/T, and JFS/T—which are essential for seamless integration with other components of the control system.
Manufactured by General Electric, this module features a standardized selection of voltage-limiting hardware components, including various rectifiers, capacitors, and diodes, ensuring robust and reliable operation.
The module is coated with a thick layer of normal-style PCB surface coating, providing enhanced protection against environmental factors.
With its precision-engineered design and high-quality components, the DS200TBQCG1AAA offers superior performance and reliability, making it an indispensable component for any advanced turbine control system.
