Board Type:Mark VI Turbine Control System
Board Model:IS200VSVOH1BED
Module Type:Circuit Board
Dimensions:11 x 6 x 6.7 cm
Weight:0.14 kg
Connectors:Six connectors including two backplanes (P1/P2) and four conductive traces (P3-P6)
Components:Four relays (K1-K4), resistors, capacitors, TP test points, and inductor beads (L1-L10)
Integrated Circuits:Over seventy ICs

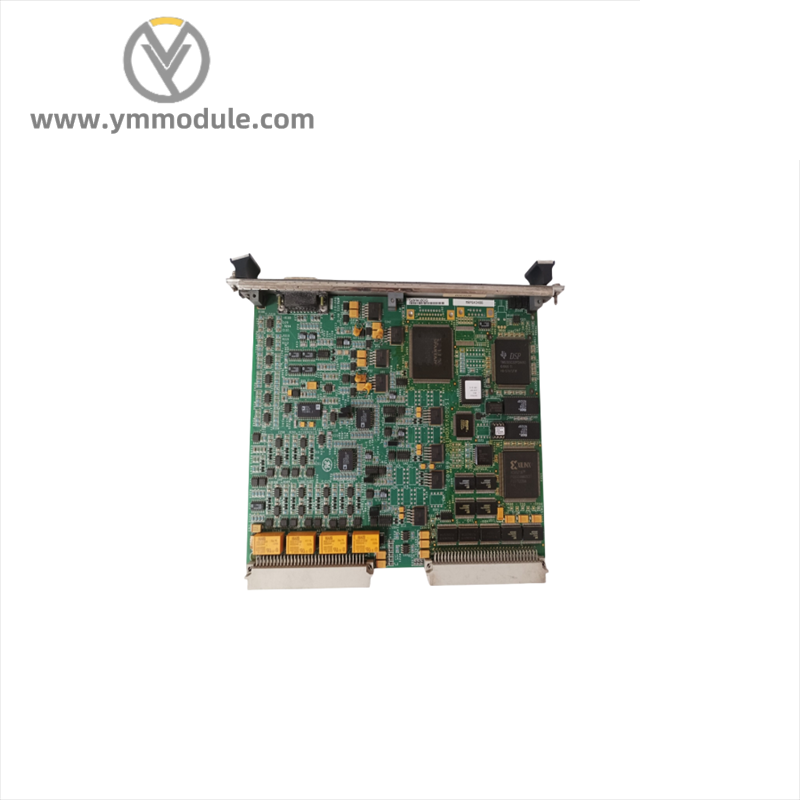

The GE VSV0 H1B IS200VSVOH1BED circuit board is a critical component for advanced industrial automation systems. Designed for seamless integration, it boasts an array of high-quality features that enhance system reliability and efficiency.
Crafted with precision, this circuit board is equipped with a comprehensive set of connectors, relays, and components, ensuring it can handle a wide range of industrial applications with ease.
Featuring a compact yet robust design, the board measures 11 x 6 x 6.7 cm and weighs just 0.14 kg, making it highly portable and suitable for various environments. Its lightweight nature doesn’t compromise on functionality or durability.
Equipped with eight channels for voltage and current input, this board provides exceptional accuracy in analog measurements, essential for precise control in industrial processes.
The inclusion of TP test points facilitates easy monitoring and maintenance, allowing engineers to quickly identify and resolve issues without disrupting system operations. The use of inductor beads further enhances signal integrity and noise reduction, contributing to the overall stability of the system.
