Sku:E12940
GE Number:469-P5-HI-A20-E
Motor Management Type:Relay
Current Transformers:5 CT Secondaries
Input Voltage Range DC:90 – 300 Volt DC
Input Voltage Range AC:70 – 265 Volt AC
Analog Outputs:4
Current Rating:390/500 MA (MAX)
Line Voltage:90-300VDC, 70-265VAC
Enclosure Rating:20-X
Frequency Range:48-62 HZ
Phase CT:5A
Overvoltage Category:II
Insulation Voltage:300 V
Pollution Degree:2

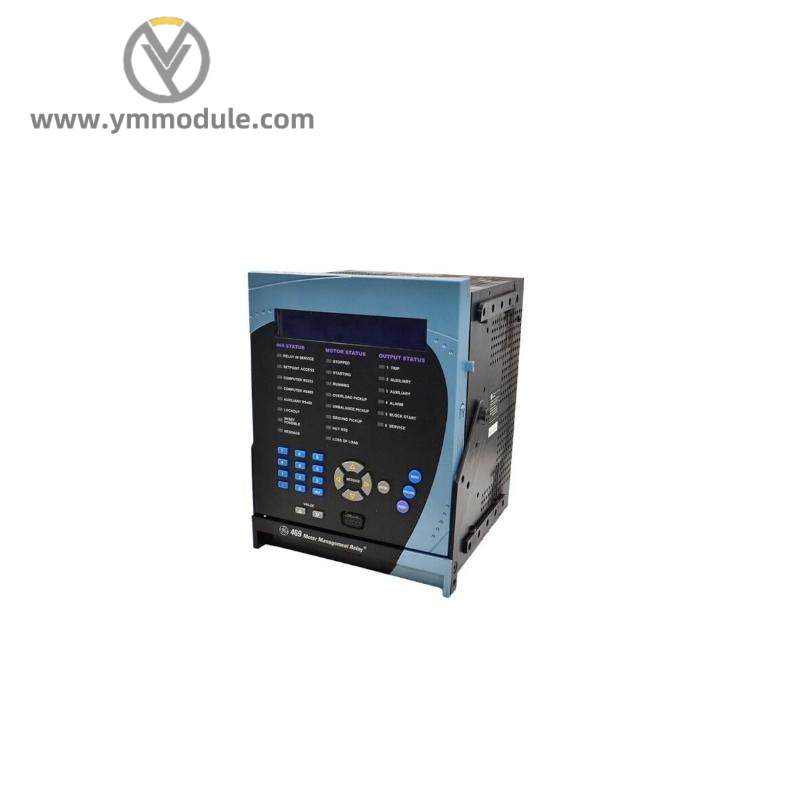

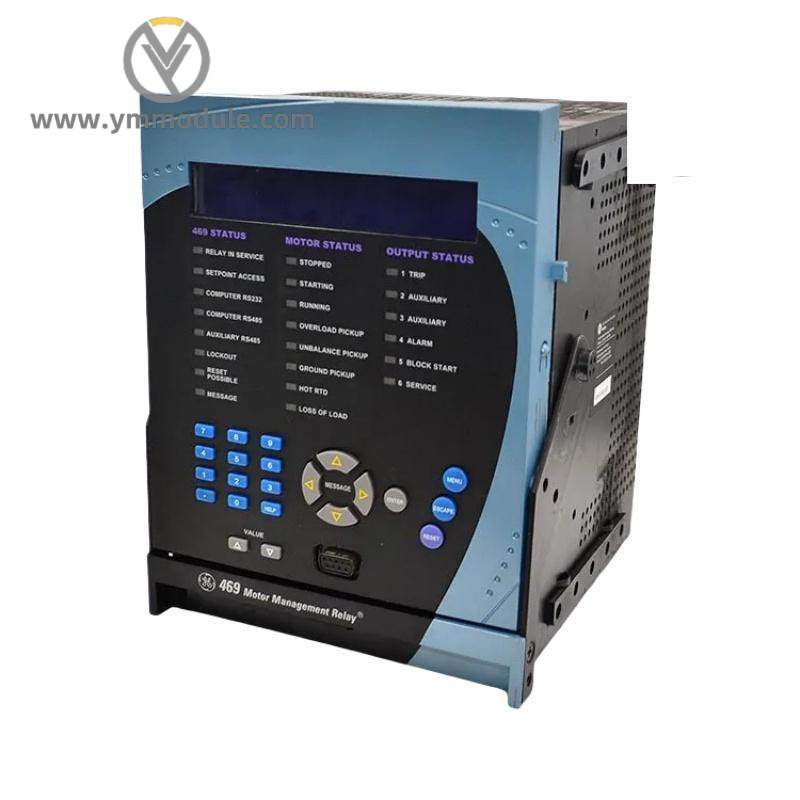

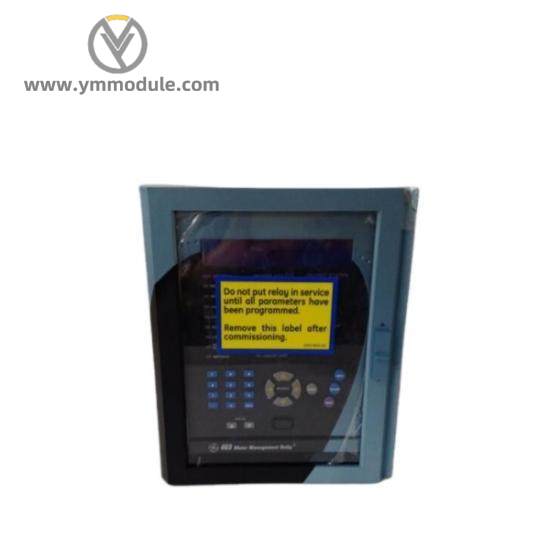

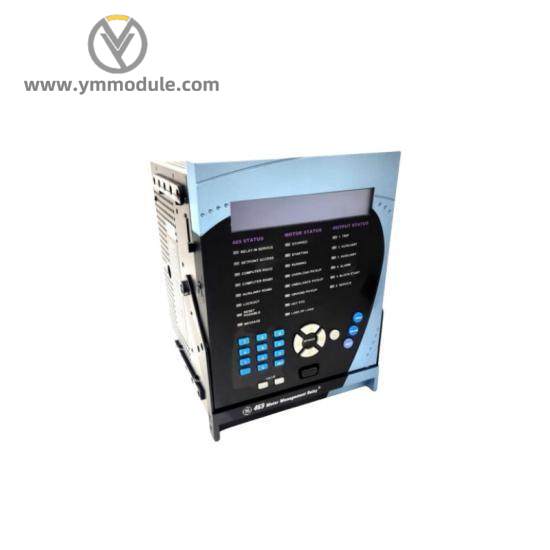

The GE 469-P5-HI-A20-E is meticulously engineered for industrial applications where reliability and performance are paramount. This motor management relay provides unparalleled protection and control for medium and large motors.
Featuring multiple RTD inputs, this relay accurately determines the actual temperature and hottest point of the motor system, ensuring optimal operational conditions. The RTDs include three-wire configurations with resistances of 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum.
Designed for harsh environments, the unit comes with conformal coating, making it highly resistant to chemical exposure and suitable for a wide range of industrial settings. Its advanced front panel display enhances user interface and control capabilities.
With four 0 to 1 mA analog outputs and nine opto-isolated digital inputs, the 469-P5-HI-A20-E ensures seamless integration with existing control systems. The relay supports a broad range of operating temperatures, making it versatile for various climatic conditions.
This model is equipped with EnerVista 469 Setup software, providing users with comprehensive tools for setup, monitoring, and maintenance. Trust in the robust design and reliable performance of the GE 469-P5-HI-A20-E for your motor management needs.
