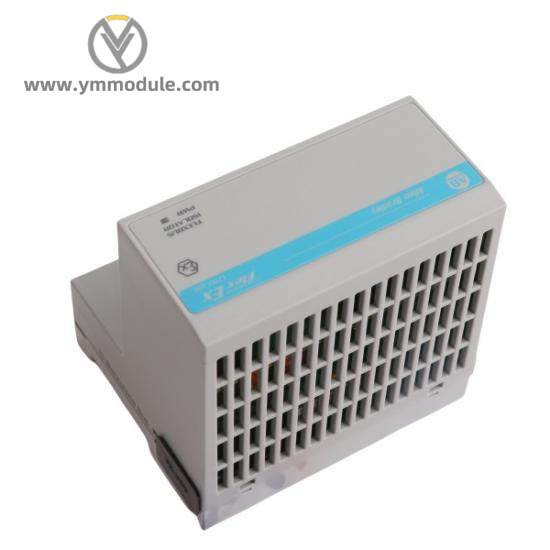

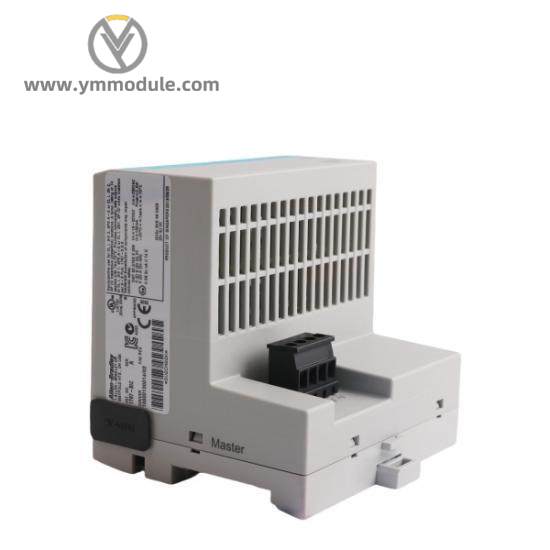

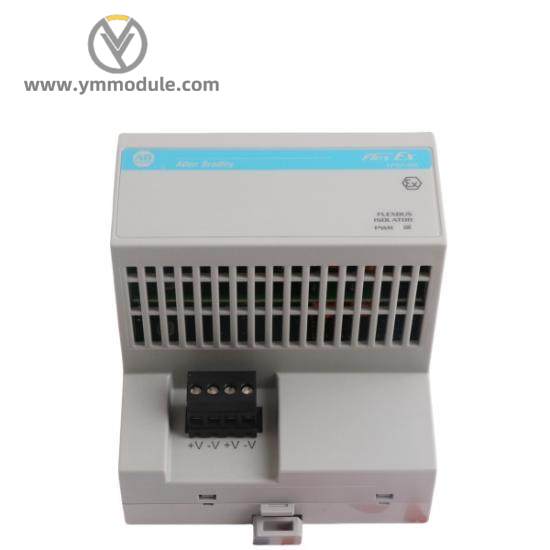

Allen-Bradley 1797-BIC Flex Bus Isolator Module

Model:1797-BIC

Manufacturer:Allen-Bradley

Type:Flex Bus Isolator Module

Connection:DIN Rail, Panel Mounting

Power Consumption:Less than 7.5 W

Operating Voltage:Functional Data Range: More than 15 V at 22 mA, more than 21.5 V at 0 mA

Input Signal:Single-ended, non-isolated, up to 23.7 V, less than 93.5 mA, less than 555 mW

Environmental:Enclosure IP20, suitable for industrial environments

Dimensions:3.7 inches in length, width unspecified

Weight:Not specified

    The Allen-Bradley 1797-BIC Flex Bus Isolator Module is designed to enhance the efficiency and safety of industrial control systems by isolating data buses from potential ground loops, ensuring uninterrupted communication even under harsh environmental conditions.

    Equipped with advanced DeviceNet and EtherNet/IP compatibility, this module seamlessly integrates with leading industrial automation platforms, supporting up to 256 nodes for extensive network scalability.

    With its high data transfer rate of up to 3 Mbps, the 1797-BIC module ensures rapid data exchange without compromising on accuracy or reliability, critical for real-time operations in manufacturing and process control environments.

    Engineered for durability and efficiency, the module operates within a wide temperature range (-40°C to +70°C), making it suitable for various industrial settings worldwide. Its IP20 enclosure provides protection against dust and light splashes, ensuring reliable performance in diverse environments.

    Easy to install and maintain, the Allen-Bradley 1797-BIC can be mounted on either panel or DIN rail, fitting seamlessly into existing control systems. This modular design allows for quick setup and minimal downtime, enabling continuous operation and streamlined maintenance procedures.
