Input Type:Digital
Number of Inputs:16
Communication Cable:16-Point
Voltage Category:24V DC
Operating Voltage Range:20.4…26.4V DC
Current per Point:0.5A @ 60°C, 1.0A @ 30°C
Power Supply:24V DC
Mounting:DIN Rail or Panel
Temperature Rating:0…60°C
Power Dissipation:5.1W
Isolation:30V Continuous
Environmental Conditions:5…95% Non-Condensing RH
Vibration:2G
Shock:30G
Interface:Ethernet

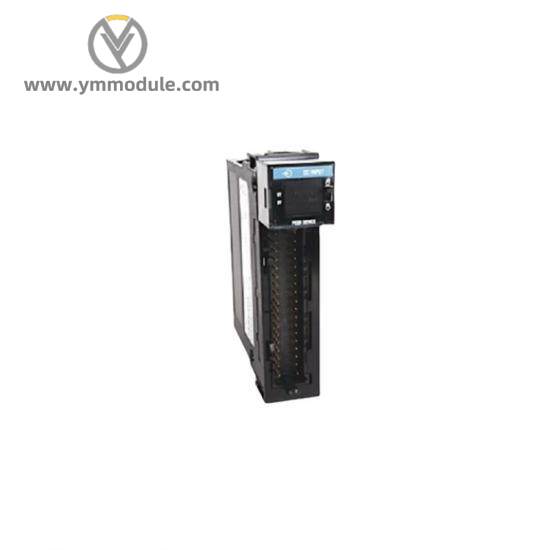

The AB 1756-IB16IF is a state-of-the-art digital input module, specifically engineered for the rigorous demands of modern industrial automation environments. It offers unparalleled reliability and precision, making it an indispensable component for enhancing system efficiency and performance.
Featuring a robust and compact design, this module is compatible with the comprehensive ControlLogix family of programmable logic controllers, ensuring seamless integration and easy installation within existing automation setups.
With its high-speed communication capabilities, the 1756-IB16IF ensures rapid data transfer, facilitating real-time monitoring and control of industrial processes. The module’s versatility is further enhanced by its compatibility with various input types, including pull-up and pull-down configurations, catering to diverse application requirements.
Operational within a wide temperature range (-40°C to +70°C) and in humid conditions without condensation, this module is built to withstand harsh industrial environments. Its internal power supply, sourced directly from the ControlLogix chassis, ensures a stable and uninterrupted operation, minimizing the risk of power supply issues.
In addition to its technical prowess, the AB 1756-IB16IF is designed with user-friendliness in mind, featuring clear labeling and intuitive connection points. This makes it accessible to technicians and engineers alike, streamlining maintenance and troubleshooting processes.
