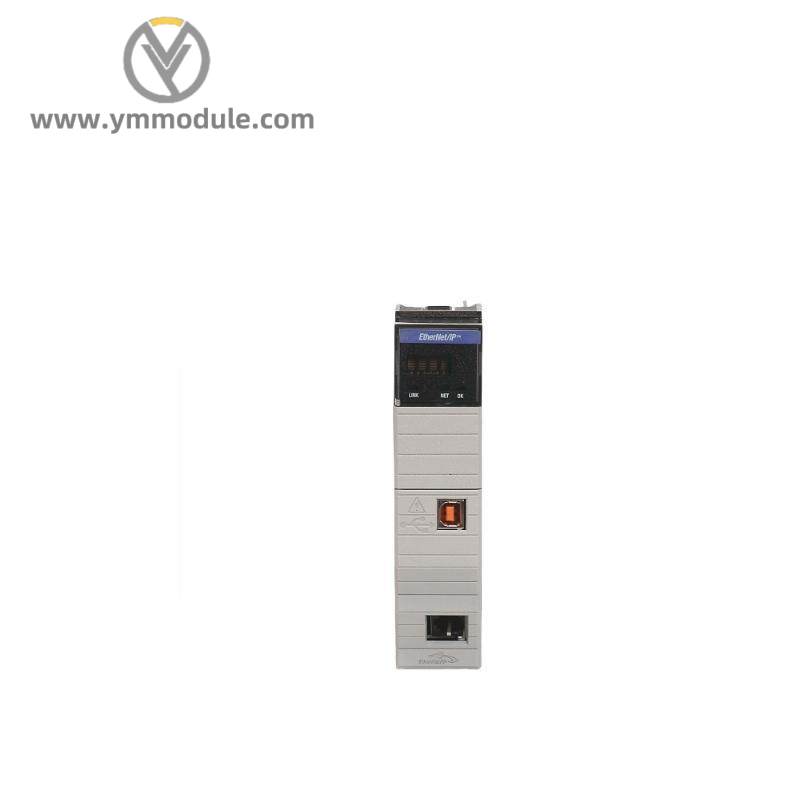

Allen-Bradley 1756-EN2TK Ethernet Bridge Module – Industrial Networking Solution

Model Type:Ethernet Bridge Module

Model Number:1756-EN2TK

Manufacturer:Allen-Bradley

Communication Protocol:EtherNet/IP

Communication Speed:10/100 Mbps

Mounting Type:Chassis

Temperature Range:0°C to 60°C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5% to 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Enclosure Type:Open Type

Connection Type:Ethernet, 802.3 Compliant Shielded or Unshielded Twisted Pair

Power Supply:3 MA at 24 VDC

Interface:Ethernet, USB Port

    The Allen-Bradley 1756-EN2TK Ethernet Bridge Module is designed for high performance and reliability in demanding industrial environments. This bridge module enables direct communication between ControlLogix PLCs and EtherNet/IP networks, enhancing system efficiency and connectivity.

    Featuring an open type enclosure and capable of handling 10/100 Mbps communication speeds, this module ensures robust data transfer and compatibility with a wide range of network devices.

    With its temperature rating from 0 to 60°C and continuous isolation up to 30 V, it is engineered to withstand harsh industrial conditions, ensuring uninterrupted operation throughout the year.

    Built with advanced RFI suppression technology, the Allen-Bradley 1756-EN2TK is protected against electromagnetic interference, safeguarding critical data transmission and preventing potential disruptions in the network.

    Easy installation on the chassis makes setup quick and straightforward, while its compact design minimizes space requirements on the control panel, offering a streamlined solution for modern industrial automation systems.
