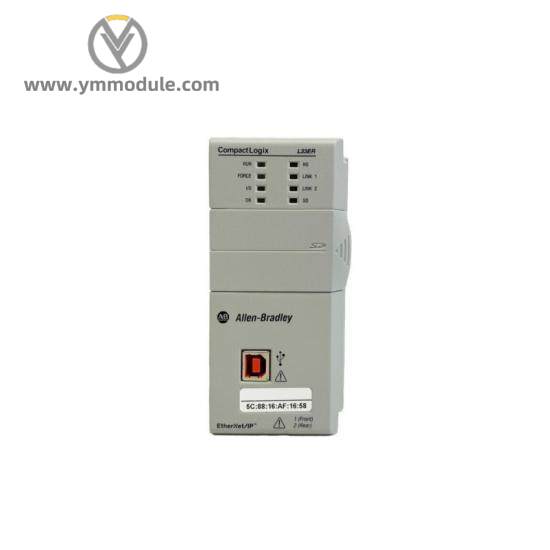

Model:1769-L33ERM
Brand:Allen-Bradley
Dimensions:5.4 x 0.9 x 4.2 inches (138 x 22 x 105 mm)
Weight:0.39 pounds (175 g)
I/O Modules:16
Ethernet/IP Nodes:40
Memory Capacity:1 MB
Ports:1 x USB Programming/Downloading, 2 x EtherNet/IP
Power Supply:24V DC
Inputs:(16) 24V DC Digital Inputs
Outputs:(16) 24V DC Digital Outputs
Analog Inputs:(4) Universal Analog Inputs
Analog Outputs:(2) Universal Analog Outputs
Counters:(4) High-speed Counters
Expansion:(4) I/O Expansion
Ethernet IP Nodes:16
Motion Control:4 Axis CIP motion with Kinematics function
The Allen-Bradley 1769-L33ERM Ethernet I/O Module is a high-performance solution designed for seamless integration into industrial automation networks. Its compact size and robust design make it suitable for applications requiring reliable data transfer and control over a wide range of industrial processes.
Equipped with dual Ethernet ports, the module supports EtherNet/IP, enabling secure and efficient communication with other devices on the network. It offers 16 digital inputs and outputs, allowing precise control over devices and processes in the manufacturing environment.
Featuring 4 universal analog input and output channels, the module can handle both voltage and current signals, making it versatile for various monitoring and control tasks. The inclusion of high-speed counters facilitates accurate measurement and control of high-frequency events.
With 1 MB of memory, the module can store extensive configuration and diagnostic information, enhancing its functionality and reliability. The USB programming/download port ensures easy setup and maintenance, while the built-in EtherNet/IP capability supports advanced network configurations.
For those requiring motion control capabilities, the Allen-Bradley 1769-L33ERM offers support for up to 4 axes of CIP motion with kinematics function. This feature enables smooth, coordinated movements of robotic arms and other mechanical systems, improving efficiency and reducing downtime.
