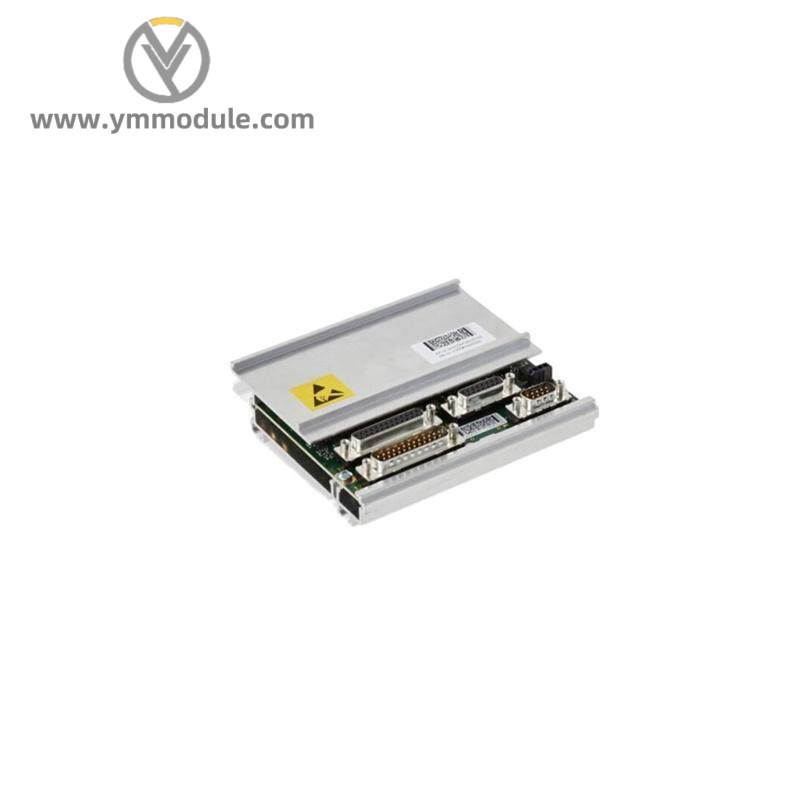

ABB SMB Measurement Board – 3HAC044168-001, 3HAC042285-001, 3HAC031115-002, Industrial Measurement Solutions

Board Type:SMB Measurement

Model Number:[“3HAC044168-001″,”3HAC042285-001″,”3HAC031115-002”]

Operating Temperature Range:-20°C to +60°C

Power Consumption:Less than 10W

Data Acquisition Rate:Up to 1 kHz

Analog Input Channels:4

Digital Input/Output Channels:8/8

Communication Interface:MODBUS RTU

    The ABB SMB Measurement Board is meticulously designed to enhance the precision and reliability of industrial measurement systems, ensuring accurate data acquisition under a wide range of operating conditions.

    Featuring four high-precision analog input channels, this board enables the collection of critical data for process control, monitoring, and analysis, making it indispensable in sectors such as manufacturing, energy, and automation.

    With an operating voltage range from 8 to 40V DC and a temperature tolerance from -20°C to +70°C, it ensures robust performance across various industrial environments, from cold storage facilities to high-temperature production lines.

    Equipped with two digital input channels, it facilitates the integration of binary inputs, such as sensor states or machine statuses, enabling comprehensive system monitoring and alert functionalities.

    The RS485 communication interface supports seamless data transfer with other devices, ensuring efficient and reliable data exchange within industrial networks.

    Its accuracy of +/- 0.01% + 2 LSB ensures minimal error margins, critical for applications where precision is paramount, such as quality control in manufacturing processes or environmental monitoring.
