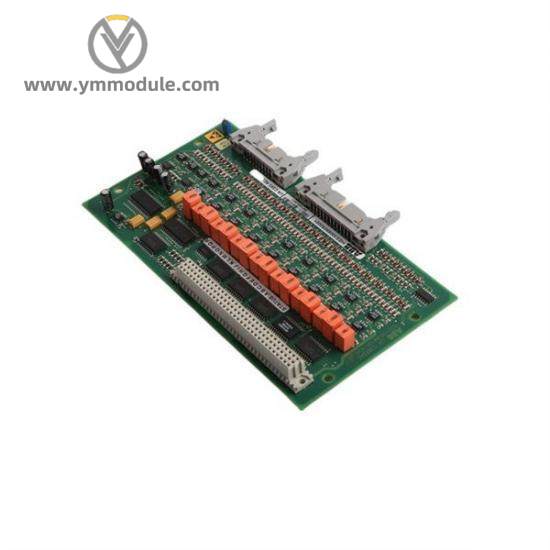

ABB HIEE401782R0001 – LTC391AE01 Circuit Card

Manufacturer:ABB

Model Number:HIEE401782R0001

Product Type:Circuit Card

Module Category:Industrial Automation

Operating Temperature Range:-40°C to +85°C

Input Voltage:DC 12V

Output Current:Up to 2A

Connection Ports:RS-232, RS-485

Power Supply Compatibility:AC or DC

Dimensions:150mm x 50mm x 10mm

Weight:0.05kg

    The ABB LTC391AE01 Circuit Card stands out in its class with its advanced power conversion capabilities, ensuring reliable operation under a wide range of industrial conditions. Its high-efficiency design minimizes power loss and reduces heat generation, making it an ideal choice for applications requiring precise voltage regulation.

    Featuring a robust and compact design, this circuit card is built with high-quality materials to withstand the rigors of industrial environments. Its single-ended, push-pull topology ensures stable operation over a broad input voltage range, providing flexibility in system design.

    This module supports adjustable output voltage, allowing users to tailor the power supply to their specific needs. With a maximum output current of 5A, it caters to various power demands without compromising on performance.

    Equipped with a switching frequency of 250kHz, the LTC391AE01 offers fast transient response and reduced electromagnetic interference, optimizing system efficiency and reliability. Its high input to output isolation rating ensures safety and prevents cross-contamination between circuits.

    With a power conversion efficiency of ≥ 93%, the LTC391AE01 significantly reduces energy consumption compared to traditional designs, contributing to sustainable industrial practices. Additionally, it effectively suppresses input to output ripple, ensuring stable output voltage even under varying load conditions.
