Operating Voltage:DC 12V
Maximum Output Current:150mA
Switching Frequency:1MHz
Load Compatibility:Up to 5V logic level
Package Size:14-pin DIP
Temperature Range:-40°C to +85°C
Supply Current:Max. 30mA

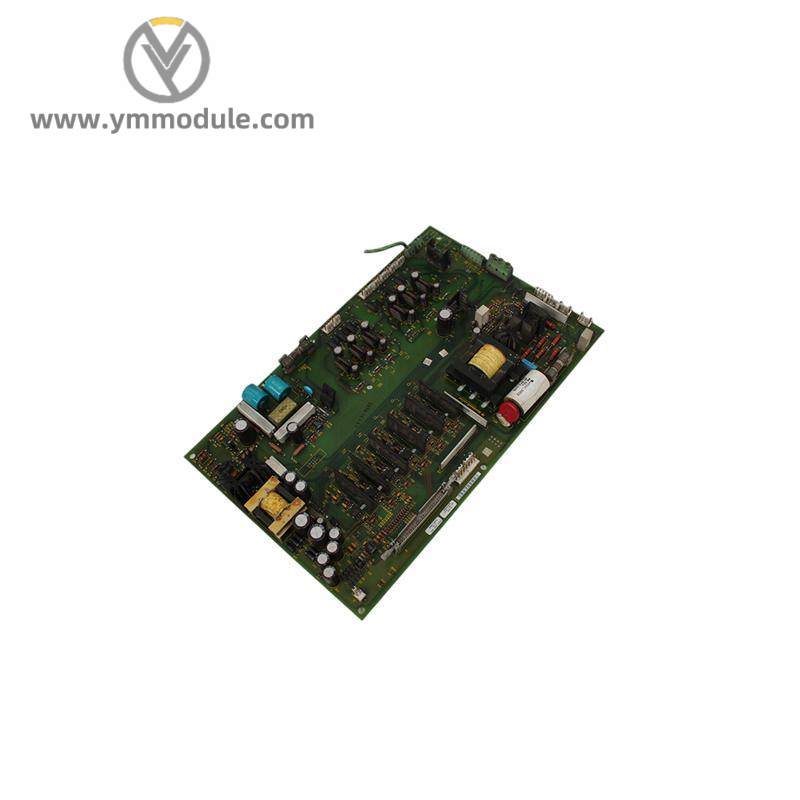

The AB Electronics 1336-BDB-SP29C Gate Driver Board is engineered to deliver unparalleled switching performance, making it an ideal choice for applications demanding fast response times and high efficiency.
Featuring a robust design capable of operating within a wide temperature range from -40°C to +85°C, this module ensures reliable performance under varying environmental conditions.
With a current handling capacity of up to 500mA per channel, the 1336-BDB-SP29C is suitable for driving high-capacity loads efficiently, enhancing system performance and reducing power consumption.
Equipped with TTL / CMOS compatible input logic levels, the board offers seamless integration with a wide range of microcontrollers and digital circuits, simplifying system design and assembly.
Offering up to 1MHz switching speed, the 1336-BDB-SP29C is designed for applications requiring rapid signal switching, such as motor control, LED lighting, and data processing systems.
Utilizing Surface Mount Technology (SMT) for its construction, the board ensures compactness, improved heat dissipation, and enhanced reliability in electronic assemblies.
